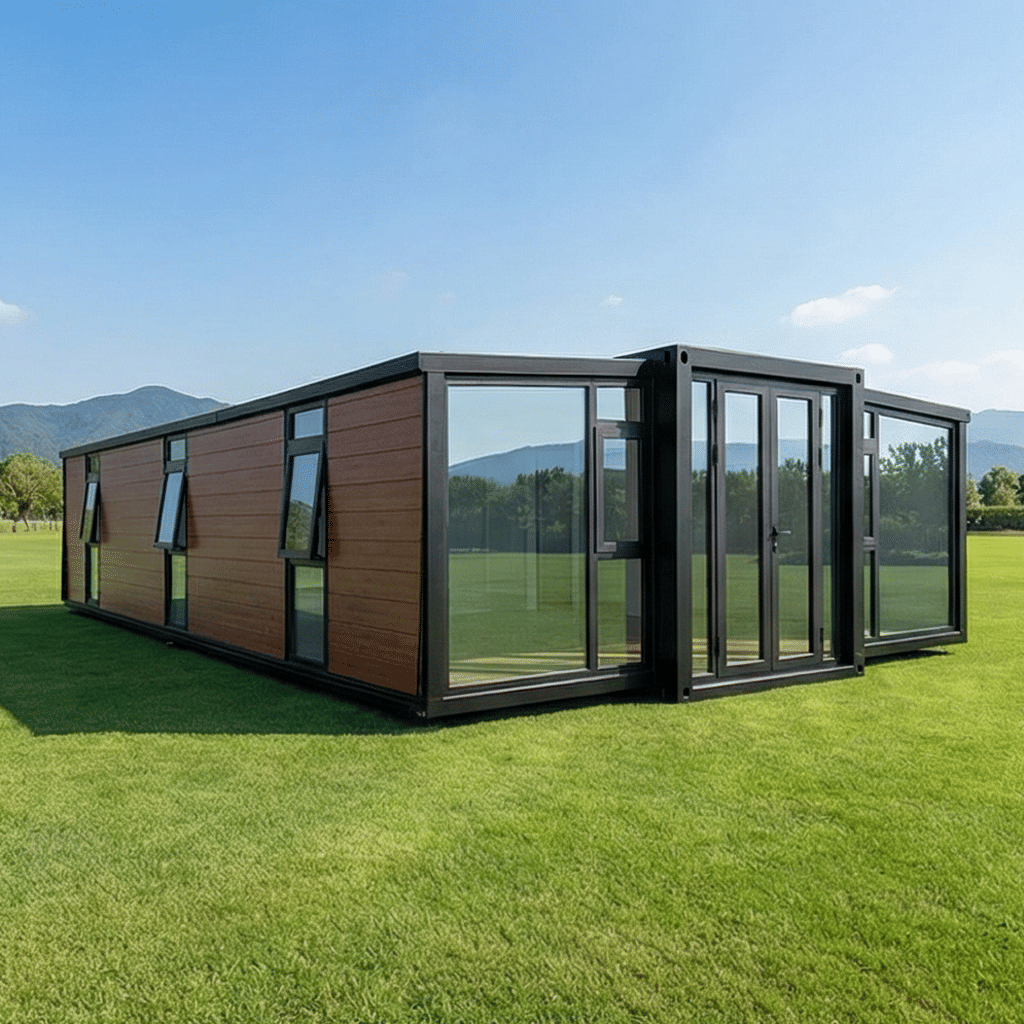

40FT Expandable House

Performance

Anti-Knock

Grade 8  seismic  resistance

Roof Bearing

80kg/m²

Ground Bearing

200kg/m²

Classification of Wind Resistance

quality class 10

Essential

Information

Extended Size (mm) L*W*H

L11800*W6240*H2480

Inner Space (mm) L*W*H

L11640*W6080*H2200

Folded Size (mm) L*W*H

L11800*W2200*H2480

Weight (KG)

4600

Frame  Structure

Top and Bottom Main Beams

Galvanized  square tube 80*140*235MM Q235

Upright

Galvanized  fold 150*210*2.0MM Q235

Floor Purlin

Galvanized square tube 40*60*1.5MM Q235

Box Hanger

Galvanize 210*150*160*4MM Q235

Folding Fan

Galvanized P-shaped  pipe40*80*1.5 Q235

Hinge

Galvanized  thickening hinge Q235

Floor

Intermediate Floor

18mm cement floor

Side Floor

18mm bamboo plywood

Thermal-

Insulating Wall

Flank

75mm sandwich sandwich panel, color roll double side  0.35 (rock wool, EPS, polyurethane options)

The standard sandwich material is 12kg/m³EPS

Cut Off

50mm sandwich sandwich plate, color steel substrate  double side  0.35.

The insulation  material  is  the  same  as↑above

Main Roof and Side Roof

50mm sandwich sandwich plate, color steel substrate  double side 0.35.

The insulation material is the same as↑above

Electric System

Parameter

1. Standard with national standard wire: Inlet line 6², air  conditioning socket 4², general socket 2.5², lighting 1.5².

(Can be customized according to the country to meet  the certification requirements circuit)

2. Circuit breaker system: 2P63A total open  1, 2P43A/2P32A/1P20 branch leakage protector each.

3. Lighting: Three anti-LED ceiling lights*6.

4. Socket: Standard international three-hole  socket (socket standard can be configured according to  customer  requirements)

Window & Door

System

Entry Door

Standard steel security door (can be customized broken  bridge aluminum, titanium magnesium alloy, aluminum  alloy door)

Window

Standard plastic steel double glass casement  window (can be customized high-end broken bridge aluminum  window, aluminum alloy window)
