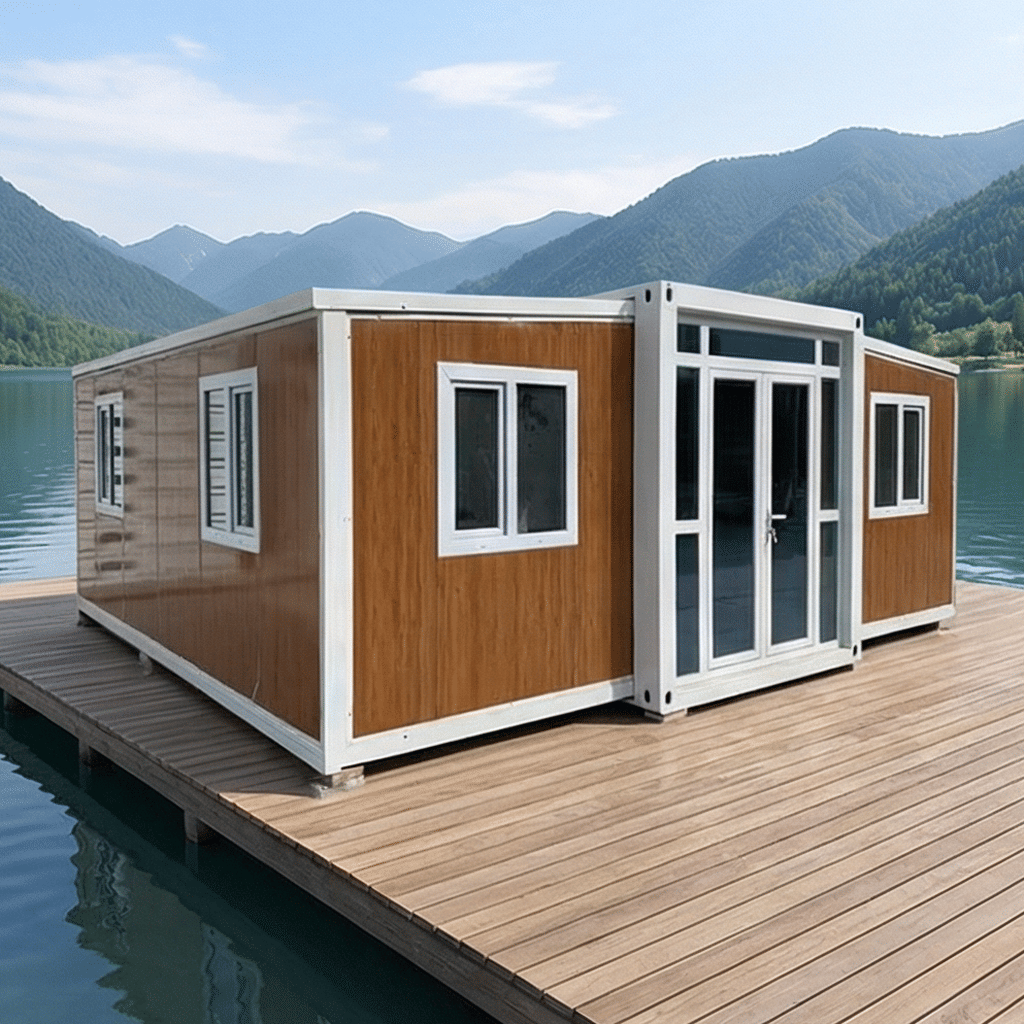

30FT Expandable House

Performance

Anti-Knock

Grade 8 seismic resistance

Roof Bearing

80kg/m²

Ground Bearing

200kg/m²

Classification of Wind Resistance

quality class 10

Essential Information

Extended Size (mm) L*W*H

L9000*W6240*H2480

Inner Space (mm) L*W*H

L8740*W6080*H2200

Close Dimension (mm) L*W*H

L9000*W2200*H2480

Weight (KG)

3500

Frame Structure

Top and Bottom Main Beams

galvanized square tube80*140*235MM Q235

Upright

Galvanized fold150*210*2.0MM Q235

Floor Purlin

galvanized square tube 40*60*1.5MM Q235

Box Hanger

Galvanize 210*150*160*4MM Q235

Folding Fan

Galvanized P-shaped  pipe40*80*1.5 Q235

Hinge

Galvanized thickening hinge Q235

Floor

Intermediate Floor

18mmcement floor

Side Floor

18mmbamboo plywood

Thermal-Insulating Wall

Flank

75mm sandwich sandwich panel, color roll double side 0.35 (rock  wool, EPS, polyurethane

options)

The standard sandwich material is 12kg/m³EPS

Cut Off

50mm sandwich sandwich plate, color steel substrate double side 0.35.

The insulation material is the same as↑above

Main Roof and Side Roof

50mm sandwich sandwich plate, color steel substrate double side 0.35.

The insulation material is the same as↑above

Electric System

Parameter

1. Standard with national standard wire: Inlet line 6², air conditioning socket 4², general socket 2.5², lighting  1.5².

(Can be customized according to the country to meet the certification requirements circuit)

2. Circuit breaker system: 2P63A total open 1, 2P43A/2P32A/1P20 branch leakage protector  each.

3. Lighting: Three anti-LED ceiling lights*6.

4. Socket: Standard international three-hole socket (socket standard can be configured according to customer requirements)

Window & Door System

Entry Door

Standard steel security door (can be customized broken bridge aluminum, titanium magnesium alloy, aluminum alloy door)

Window

Standard plastic steel double glass casement window (can be customized high-end broken  bridge aluminum window, aluminum alloy window)
