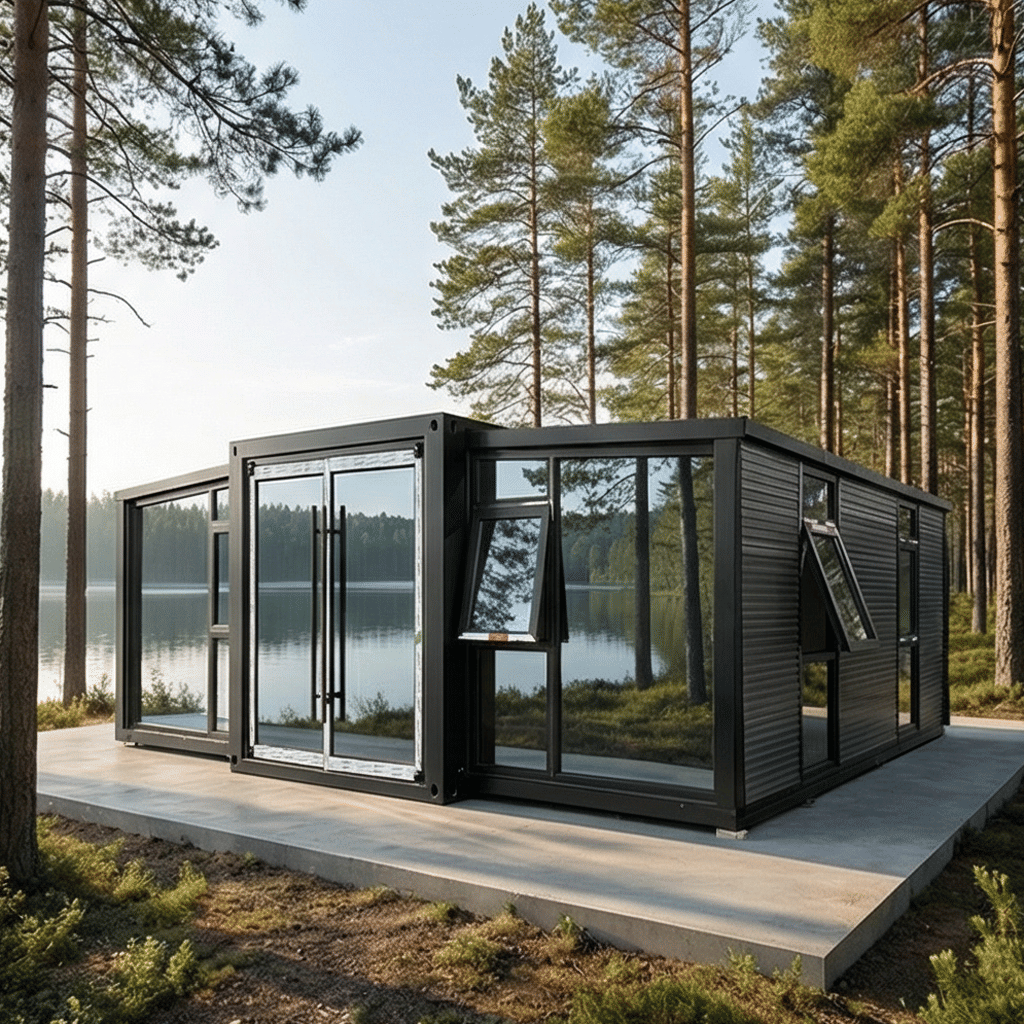

20FT Expandable House

Anti-knock Grade 8 Seismic Resistance

Performance

Roof Bearing

80kg/m²

Ground  Bearing

200kg/m²

Essential

Information

Classification of Wind Resistance

quality class 10

Expansion Size (mm) L*W*H

L5900*W6300*H2480

Interior Space (mm) L*W*H

L5640*W6140*H2240

Folding Size (mm) L*W*H

L5900*W2200*H2480

Weight (KG)

2500

Frame  Structure

Top and Bottom Main Beams

Galvanized  square  tube 80*140*235MM Q235

Upright

Galvanized fold 150*210*2.0MM Q235

Floor Purlin

Lvanized square 60*1.5MM Q23

Box Hanger

Galvanize210*150*160*4MM  Q235

Folding Fan

Alvanized P-shaped  pipe40*80*1.5 Q23

Hinge

Galvanized thickening hinge Q235

Floor

Intermediate Floor

18mm cement floor

Side Floor

18mm bamboo plywood

Thermal-

Insulating Wall

Flank

5mm sandwich sandwich panel, color roll double side 0.35 (core material rock wool, EPS, polyurethane  options)

The standard sandwich material is 12kg/m³EPS

Cut  Off

50mm sandwich sandwich plate, color steel substrate double side 0.35.

The insulation material is the same as↑above.

Main Roof and Side Roof

50mm sandwich sandwich plate,color  steel  substrate double  side 0.35.

The insulation material is the same as ↑above

Electric System

Parameter

1. Standard with national standard wire; Inlet line 6², air conditioning socket 4², general  socket 2.5², lighting  1.52.

(Can be customized according to the country to meet the certification requirements circuit)

2. Circuit breaker system: 2P63A total open 1,2P43A/2P32A/1P20 branch leakage protector  each.

3. Lighting: Three anti-LED ceiling lights*6.

4. Socket: Standard international three-hole socket (socket standard can be iconfigured according to customer requirements)

Window  & Door

System

Entry Door

Standard steel security door (can be customized broken  bridge aluminum, titanium magnesium alloy, aluminum  alloy  door)

Window

Standard plastic steel double glass casement window (can be customized high-end broken bridge aluminum  window, aluminum alloy window)
