Adjustable Stair Glass Clamp: The Smart Solution for Angle Glass Railings

Installing a frameless stair glass railing has traditionally been a headache for contractors and glaziers. Standard flat spigots cannot accommodate stair slopes, often requiring expensive custom-drilled angled glass or unsightly base shims.

To solve this challenge, ZDCAST Factory introduces our “Patented Adjustable Angle Stainless Steel Glass Clamp & Spigot (51*21*225mm)”—engineered specifically for sloped stairs, ramps, and transitional balustrades.

Key Features & Selling Points

• Full-Range Angle & Level Adjustability: Effortlessly adapts to any stair pitch or ramp incline. With a bottom micro-leveling screws ensure seamless panel-to-panel alignment without re-cutting glass.
• Premium Duplex 2205 Stainless Steel:Superior corrosion resistance compared to standard 304/316 stainless steel. Rust-proof, non-conductive, and suitable for both coastal outdoor and high-end indoor environments.
• Durable Architectural Finishes: Available in Black, Satin, Gold, Mirror Polished, and White. Matt black coating never fades.
• No Glass Pre-Drilling (Friction Fit): High-strength clamping system secures glass without drilling through-holes, saving fabrication costs and drastically cutting jobsite installation time.

Technical Specifications

• Product:Patented Adjustable Angle Glass Spigot / Clamp
• Dimensions:2″ × 2.5″ × 8.8″ Height
• Material:Duplex 2205 Stainless Steel
• Compatible Glass:10 mm – 19 mm (3/8″ – 3/4″) Tempered / Laminated Glass
• Mounting Hardware:Concrete anchor bolts & wood bolts included
• Available Finishes:Black, Satin, Gold, Mirror, White
• Design Feature:Any angle adjustable, level adjustable, hole-free friction fit

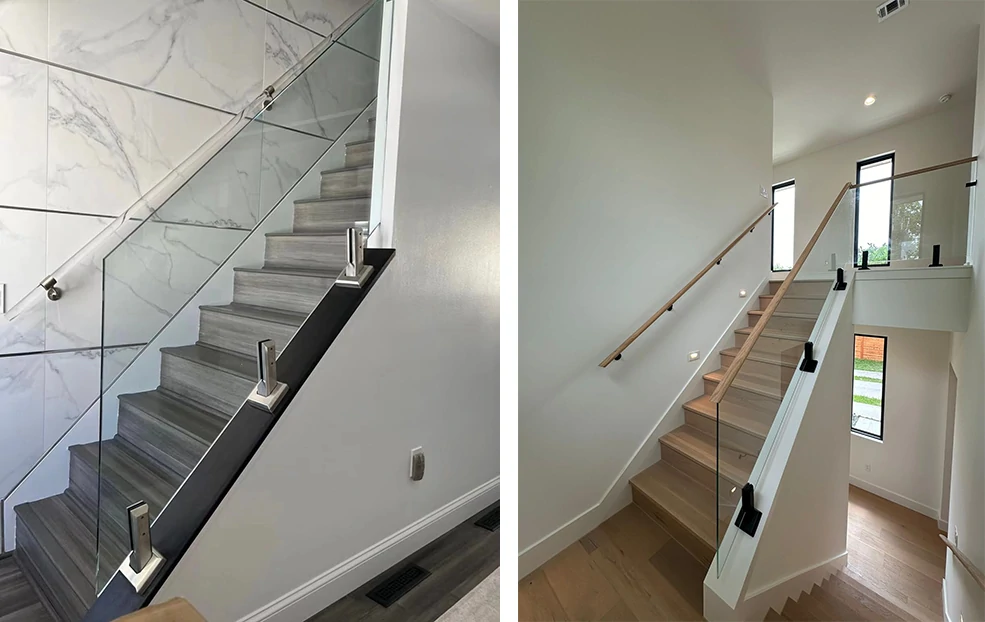

Our angle tilt glass spigot fits seamlessly into modern architectural railing projects:

• Interior Floating & Open-Tread Stairs:** Delivers a minimalist, open aesthetic that maximizes natural light
• Commercial Atriums & Office Railings: High-load structural capacity built for high-traffic environments.
• Exterior Staircases & Terraces: Duplex 2205 provides all-weather durability against coastal humidity and heavy rainfall.
• ADA-Compliant Access Ramps: Easily handles gradual slope transitions with uniform aesthetics.

Quick Installation & Specifier Tips

• Mount the Base: Secure the base to concrete or solid timber using the bolts.
• Set the Incline: Adjust the clamp to match your staircase angle, then lightly tighten.
• Slide the Glass: Insert protective rubber gaskets and slide in the glass panel (no holes required).
• Micro-Adjust & Tighten: Fine-tune vertical leveling across adjacent panels, then torque clamp screws securely.
• Cover Plate:Snap on the base cover for a clean, screw-free finish.

Why Choose ZDCAST?

As a direct precision investment casting manufacturer, “ZDCAST”offers clear supply advantages: Direct Factory Supply: Competitive wholesale pricing directly from the foundry.

• OEM & ODM Capabilities: Custom branding, finishes, and tailored dimensions available on request.
• Strict Quality Control: Full material spectrum testing and salt-spray testing for every batch.
• Ready Inventory:Popular finishes are stocked for fast sample delivery and bulk export.
