Solar-Powered LED Illuminated Glass Spigot

Product Specification & Operation Manual

1.Product Overview

This is a newly developed solar-powered LED illuminated glass clamp,specially designed for swimming pool fencing and outdoor glass balustrade systems.It features a drill-free installation for glass panels,built-in solar energy storage and long-lasting LED lighting,delivering both functional

2. Basic Specifications &Material

2.1 Dimensions &Weight

• Overall dimensions:50mm ×50mm ×160mm (W ×D ×H)
• Unit net weight:1.5 kg

2.2 Core Material

• Material:Duplex Stainless Steel Grade 2205
• Corrosion performance:Superior corrosion and rust resistance,fully suitable for coastal and high-salinity outdoor environments without rusting.

2.3 Surface Finish Options

Available in 4 standard finishes to match different project styles:

• Mirror polished
• Brushed finish
• Black finish
• White finish

2.4 Glass Compatibility

• Suitable glass thickness:10 mm –12 mm
• Recommended glass panel size:42 inch ×42 inch (height ×width)
• Maximum recommended glass height:42 inch (for optimal light refraction effect)

3. Working Principle

This product operates on a self-contained solar energy system,requiring no external power supply or wiring.

• Daytime charging: Dual solar panels installed on both sides of the spigot absorb sunlight and convert solar energy into electrical energy.
• Energy storage: The generated electricity is stored in the built-in rechargeable battery at the bottom of the unit.

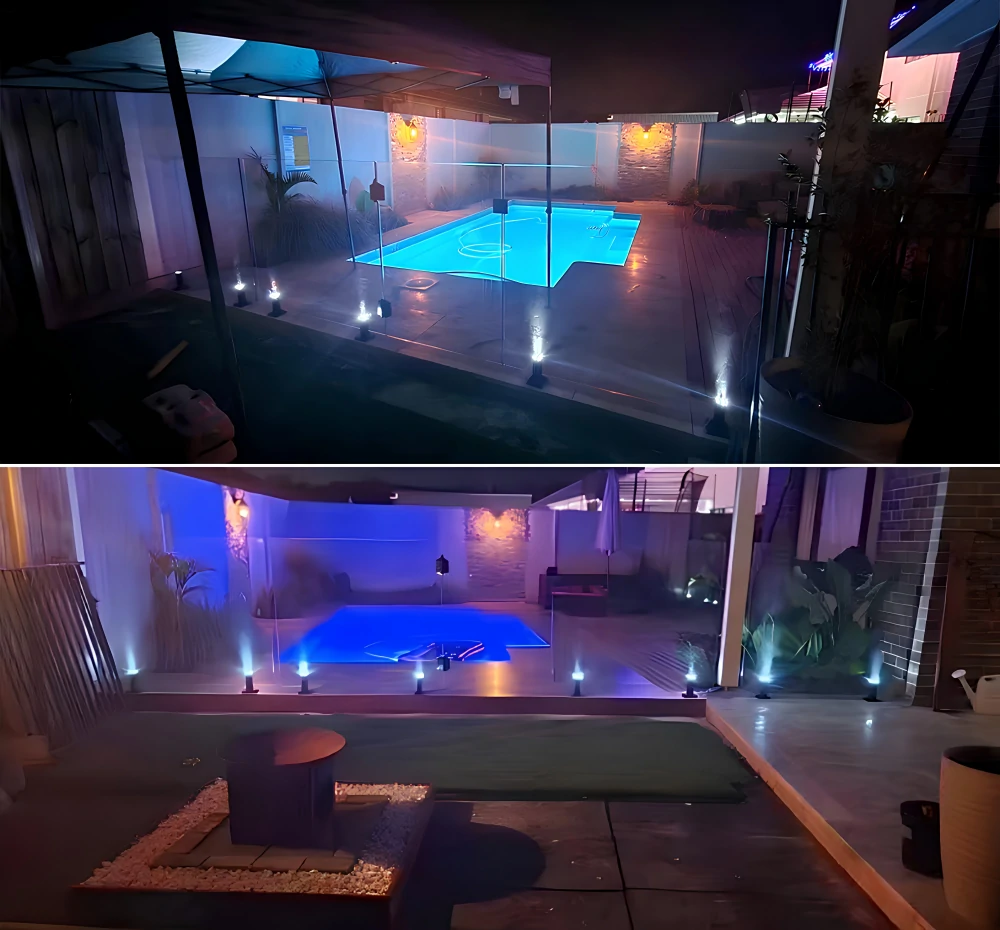

• Nighttime illumination: When the manual switch is turned on,the battery powers the built-in LED light source continuously.The light refracts through the glass panel to deliver uniform ambient lighting along the full height of the glass.
• Runtime: After a full charge under sufficient sunlight,the product supports up to 72 hours of continuous illumination.

4. Installation Instructions

The installation procedure is identical to that of standard glass spigots,with no drilling required on the glass panel.

• Mark fixing positions on the floor according to the glass panel layout.
• Fix the base of each glass spigot to the floor with fasteners.
• Insert the glass panel into the spigot and secure it with the internal gaskets and top cover.
• Quantity requirement: 2 spigots per glass panel for stable fixing and uniform lighting effect.

4.1 Installation Notes for Optimal Lighting

Keep the glass height within 42 inches to ensure the light refracts fully to the top of the glass.Excessive glass height will result in insufficient brightness at the upper section of the panel.

Do not install handrails on the top edge of the glass, as the handrail structure will block light propagation and interrupt the full-panel lighting effect.

5. Lighting Color Options

We provide both single-color and multi-color cycling modes to meet different project requirements:

5.1 Single-Color Mode

Available solid colors include:

• White
• Red
• Yellow
• Green Other single colors can be customized upon request

5.2 Multi-Color Cycling Mode

The LED cycles automatically between 3 colors,switching every 2–3 seconds. Standard cycling schemes include:

• White →Yellow →Red
• Yellow →Red →Green Custom color cycling sequences are available for bulk orders.

6. Glass Type &Lighting Performance

The lighting effect varies with different glass types,ranked from best to poorest performance:

• Ultra-clear tempered glass: Delivers the highest light transmittance and the most uniform,bright lighting effect –recommended for premium projects.
• Monolithic tempered glass: Provides good light transmittance and standard lighting performance.
• Laminated glass: Has relatively lower light transmittance,resulting in reduced overall brightness.

7. Service Life &Battery Maintenance

7.1 Service Life

Under normal operating conditions,the product service life is determined by the battery cycle life,which is typically 3–5 years.The battery is replaceable when it reaches the end of its service life.

7.2 Battery Care Instruction

• Turn the switch to the OFF position when the product will not be used for an extended period.
• This prevents full battery discharge,which can permanently reduce battery capacity and shorten service life.

8. Operating Limitations &Cautions

• Temperature limitation:Due to battery performance constraints,the product cannot operate normally in extremely cold environments.It will stop working when the ambient temperature drops below -10°C.
• Application scope:This product is designed for outdoor use only;it relies on natural sunlight for charging.
• No remote control:The product is controlled by a built-in manual switch;no remote controller is included.
• Keep the solar panel surface clean to maintain charging efficiency.

9. Intellectual Property &Patent Protection

This LED glass spigot design is protected by official design patents in multiple global markets:

• Australia Design Registration
• United States Design Patent
• Canada Design Patent Oficial patent certificates are available upon request.

10. Package Contents

Each unit is supplied with full mounting accessories:

• 2 ×LED illuminated glass spigot main body
• 1 ×top cover plate
• Matching rubber gaskets for glass fixation
