360-Degree Rotating Glass Clamp: The Ultimate Adjustable Hardware for Complex Stair & Balustrade Installations

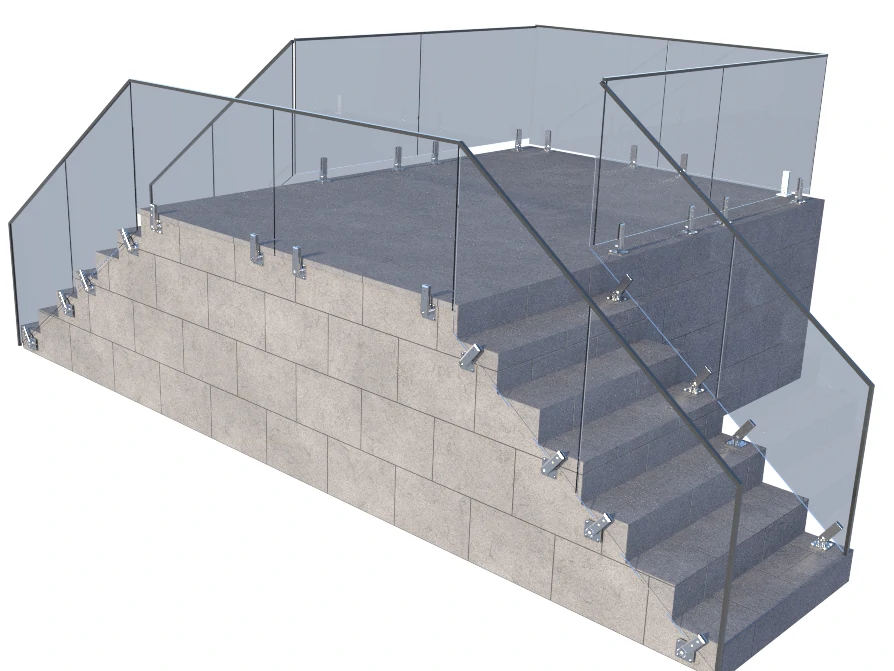

1. Introduction: Overcoming the Limitations of Fixed Railing Hardware

Modern architectural railings demand clean, uninterrupted glass lines. However, staircases, winding steps, and irregular architectural layouts have long created significant installation challenges for contractors, glaziers, and installers.

Traditional fixed glass clamps and standard spigots offer zero angular tolerance. When stair pitch varies slightly, when steps are narrow, or when mounting surfaces are uneven, installers often face:

• Misaligned glass panels that require labor-intensive shimming or costly re-drilling.
• Compromised structural aesthetics due to bulky, mismatched transition brackets.
• Inability to mount hardware on narrow stair treads or side stringers.

To resolve these field installation bottlenecks, ZDCAST has engineered the Patented 360-Degree Rotating Stainless Steel Glass Clamp & Spigot. Combining multi-axis articulation, dual-mounting capabilities, and precision micro-adjustments into a compact footprint, this innovative fitting sets a new standard for versatility and structural reliability in stair glass railing projects.

2. 7 Core Engineering Advantages (Deep Dive)

Our engineering team developed this patented rotary clamp based on real-world contractor feedback. Below is how each design feature translates into practical jobsite and aesthetic benefits:

1. 360-Degree Free Rotation & Angle Articulation

• Omnidirectional Flexibility: The clamp head pivots a full 360 degrees horizontally and tilts smoothly along the vertical axis.
• Seamless Transitions: Perfectly accommodates any stair slope angle, ramp pitch, or irregular corner transition (such as spiral staircases or 45°/135° landings) without requiring custom-manufactured hardware.
• Positive Interlocking Gear Mechanism: Integrated precision radial splines/teeth lock the angle firmly into place once torqued, preventing slippage under heavy lateral wind loads or crowd pressure.

2. Dual-Mounting Versatility: Deck (Top) & Fascia (Side) Installation

• Two Installation Modes in One Product: Can be mounted flat on top of stair treads (top mount) or securely bolted to the side stringer / fascia (side mount).
• Space Optimization: Side mounting keeps the entire stair tread clear, maximizing usable walking width on residential and commercial stairs.

3. Compact 100 × 100 mm Base for Narrow Staircases

• Optimized Footprint: At just 100 mm × 100 mm (approx. 4″ × 4″), the compact square base plate fits easily onto narrow timber stringers, steel channel edges, or tight concrete steps.
• Minimalist Aesthetic: Eliminates the obtrusive bulk of standard floor posts, delivering a streamlined, frameless appearance.

4. 6 mm Independent Glass Height Micro-Adjustment

• Precision Leveling: An internal height-adjustment mechanism allows the glass panel to be raised or lowered by up to 6 mm.
• Eliminates Glass Step-Offs: Even if adjacent concrete treads vary slightly in rise, installers can easily adjust panels to maintain a perfectly continuous, laser-straight handrail height across the entire flight.

5. Wide Glass Compatibility: 10 mm – 14 mm (3/8″ to 9/16″)

• Hole-Free Friction Clamping: High-tensile clamping screws hold the glass securely with heavy-duty EPDM/neoprene protection gaskets.
• Zero Glass Pre-Drilling: Eliminates the need to pre-drill holes in tempered or laminated glass panels, substantially reducing glass fabrication lead times, tempering breakage risks, and on-site measuring errors.

6. Four-Point Base Leveling for Uneven Ground Surfaces

• Uneven Substrate Compensation: The base plate incorporates dedicated leveling set screws around its perimeter.
• No More Ugly Shims: Installers can micro-level the base directly against rough concrete, textured stone, or imperfect timber decks without resorting to visible plastic or metal shims.

7. Slotted Oval Anchor Holes for Flexible Positioning

• Drilling Drift Tolerance: The four anchor holes are machined as elongated oval slots rather than static round holes.
• Hassle-Free Fastening: If hammer-drilling into concrete hits rebar or drifts slightly off center, the slotted holes provide lateral adjustment tolerance to ensure the spigot remains perfectly aligned along the layout line.

3. Product Specifications & Technical Data

Parameter	Specification
Product Model	Patented 360-Degree Rotating Stair Glass Clamp / Spigot
Base Footprint	100 mm × 100 mm (approx. 4″ × 4″)
Overall Height	193 mm
Clamp Width / Depth	50 mm width × 54.3 mm depth
Offset Distance	39.6 mm (base plate to clamp centerline)
Compatible Glass Thickness	10 mm – 14 mm (3/8″ – 9/16″) tempered / laminated glass
Height Adjustment Range	Up to 6 mm vertical micro-adjustment
Rotation & Tilt Range	360° axial rotation + full-range slope tilt
Available Materials	Premium Duplex 2205 / Marine Grade 316 / 304 Stainless Steel
Available Finishes	Satin Brushed, Mirror Polished, Matte Black, PVD Titanium Gold
Mounting Options	Top / Floor Mount (Deck) or Side / Fascia Mount (Stringer)
Glass Processing	Friction clamping — no pre-drilled holes required

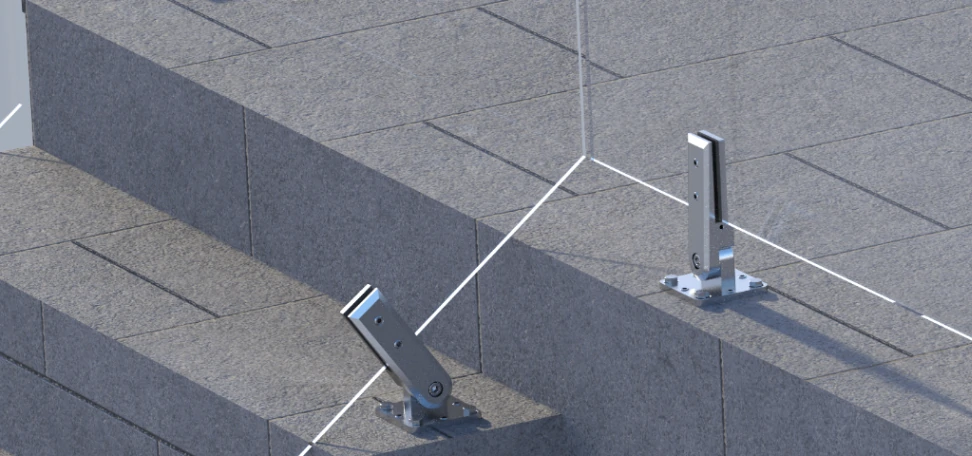

4. Primary Application Scenarios

1. Residential Spiral & Straight Staircases: Accommodates changing pitches and narrow treads where standard spigots cannot fit.
2. Side-Mounted (Fascia) Balustrades: Ideal for maximizing walkable tread width on compact stair designs by securing the hardware directly to the exterior stringer.
3. Commercial Atriums & Mezzanines: Seamlessly handles complex multi-angle transitions between flat landings, ramps, and stair flights.
4. ADA-Compliant Sloped Ramps: Provides continuous, code-compliant glass balustrade support along gradual inclines.

5. Step-by-Step Installation & Adjustment Guide

1. Positioning & Anchoring: Mark mounting points on the stair tread or side stringer. Fasten the base plate using heavy-duty anchor bolts through the slotted oval holes, utilizing the slot play to achieve exact alignment.
2. Base Leveling: If the substrate is uneven, turn the perimeter leveling set screws until the base plate is completely stable and plumb.
3. Set the Rotation & Incline Angle: Rotate the clamp head to the desired orientation (360°) and tilt it to match the stair pitch. Hand-tighten the central pivot bolt into the toothed locking gear.
4. Insert the Glass Panel: Place the protective rubber gaskets into the clamp channel and gently slide the 10–14 mm glass sheet into place.

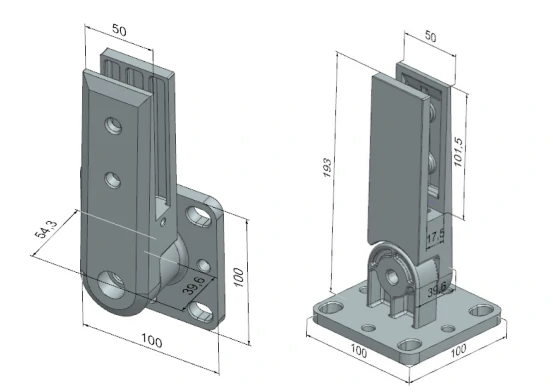

5. Fine-Tune Height & Lock: Use the vertical height adjustment mechanism to fine-tune the glass height (up to 6 mm) to match neighboring panels. Torque down the clamping screws and central pivot bolt to final specification.

6. Why Choose ZDCAST: Direct Foundry & Engineering Support

As an established precision investment casting foundry specializing in architectural hardware, ZDCAST delivers substantial advantages to global hardware distributors, architectural specifiers, and project contractors:

• Patented Proprietary Engineering: Unique patented designs that solve real installer pain points and give your brand an exclusive competitive edge.
• Direct Foundry Pricing: Complete in-house production—from silica-sol investment casting, CNC machining, to surface polishing—eliminating intermediary trading markups.
• Strict Quality Assurance: 100% material verification with optical spectrometer analysis, load capacity testing, and extended salt-spray corrosion resistance tests.
• OEM & ODM Customization: Custom logo laser marking, custom dimensions, tailored surface finishes (PVD gold, black, satin), and project packaging available upon request.
• Fast Global Fulfillment: Reliable supply chain management with stock availability for core finishes to support fast sample dispatch and volume shipments.

7. Elevate Your Next Railing Project with ZDCAST

Eliminate the frustration of misaligned stair glass and rigid hardware. Contact our sales engineering team today to learn how our 360-degree rotating glass clamp can save labor hours and elevate the quality of your architectural glass projects.

Explore our complete catalog at [www.zdcast.com] or send us an inquiry to request product specifications, CAD drawings, or a trial sample kit.
